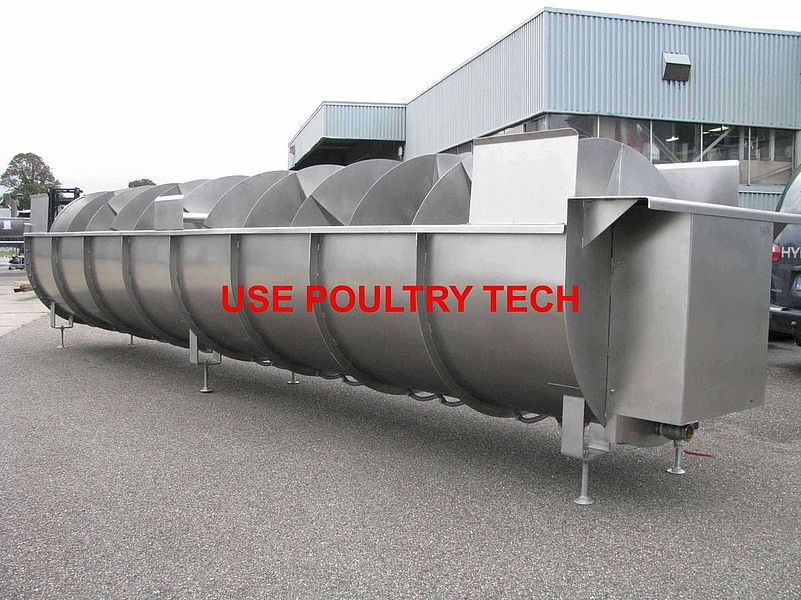

Water Screw Chiller | 3, 6, 9 or 12 meters

  • Ideal for washing and pre-chilling eviscerated poultry prior to weighing, portioning and packing
  • Prevent deterioration in meat quality and micobrial growth by lowering your product temperature
  • Flexible set-up: comes in sections of 3 and 6 meters length and a diameter of 1600 mm, which can be combined to match any production capacity

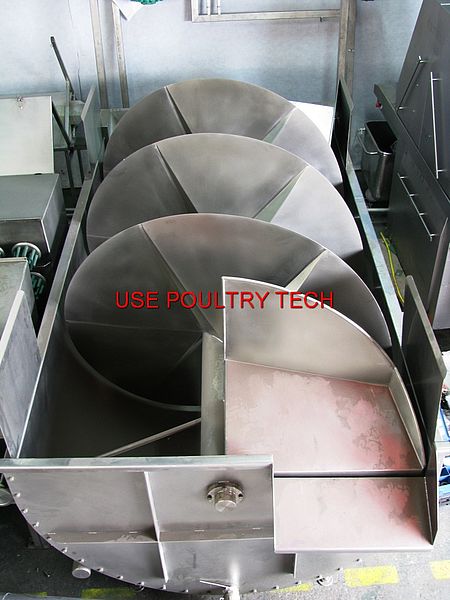

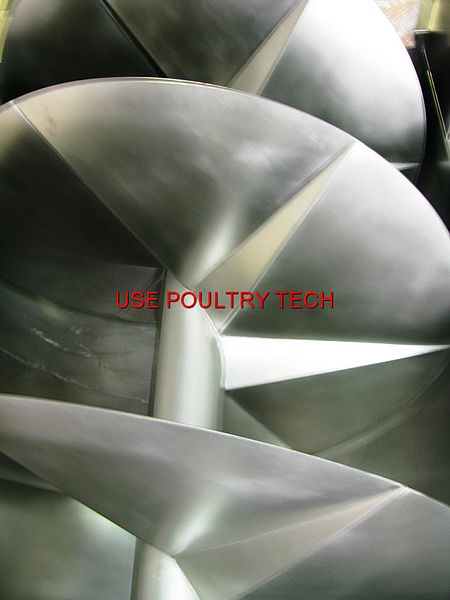

  • Birds are conveyed trough a trough-like tank by means of an auger
  • A counter-flow design is possible where carcasses move counter to the flow of cool, clean water, which reduces harmful organisms and improves hygiene;
  • Improved cooling efficiency can be achieved by blowing air into the bottom of the tank to create turbulence
  • High quality: designed and made in Europe
  • Build to last: constructed out of stainless steel
  • Units are supplied with an air blower and control panel

Model Ø1.6 x 3m

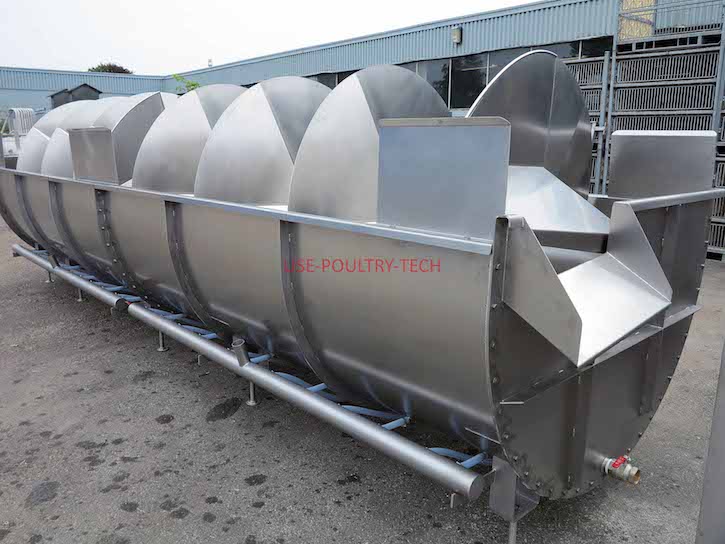

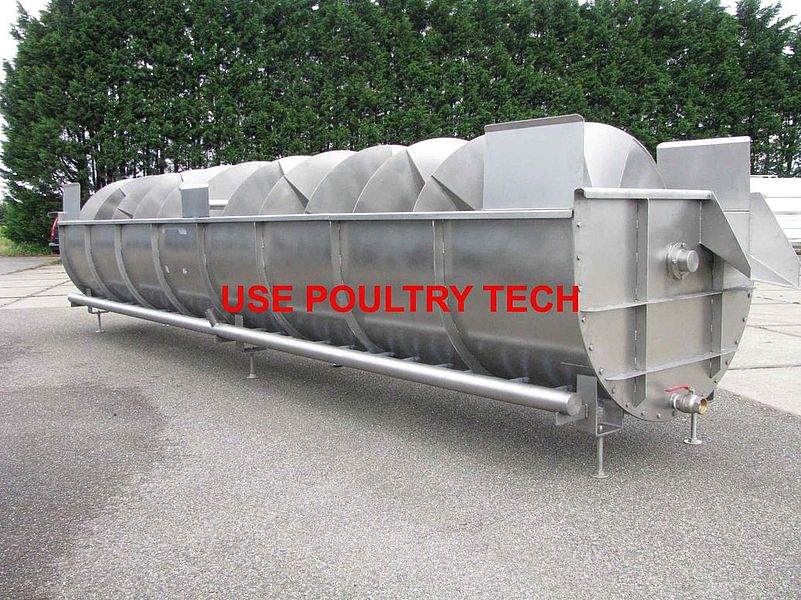

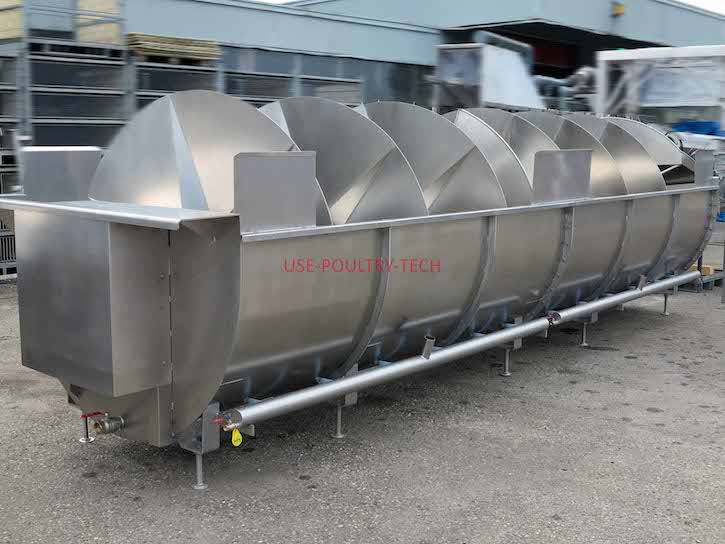

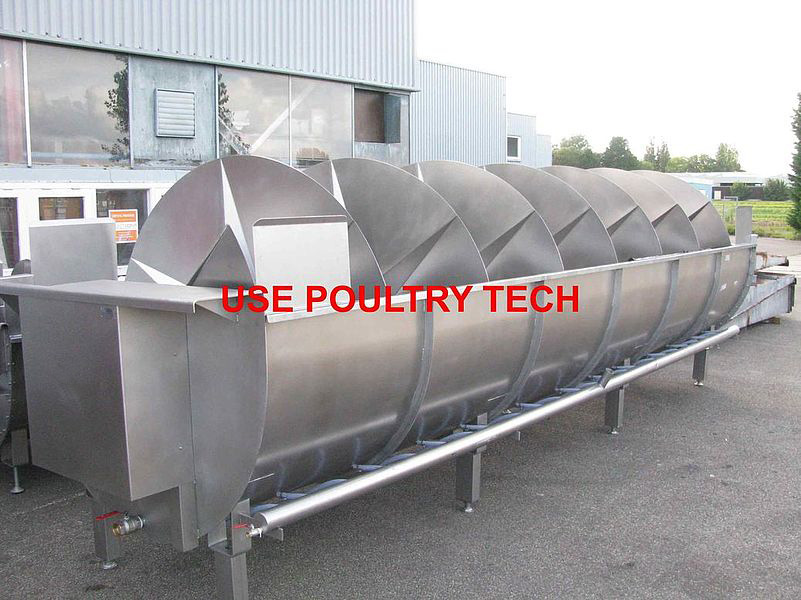

Model Ø1.6 x 6m

Model Ø1.6 x 6m, two sections

Also available: Model Ø1.6 x 9m & Model Ø1.6 x 12m!

Screw Chiller Product Video

Request quotation

Screw Chiller Ø1.6 x 3m

Details

brand: USE Poultry Tech
machine: Screw Chiller
units: Fixed Unloader
capacity: 1000 bph
machine length: 3000 mm
machine width: 1600 mm
machine height: 2000 mm
weight: 900 kg
installed power per motor: 1.75 kW
current state: 1

Screw Chiller Ø1.6 x 6m

Details

brand: USE Poultry Tech
machine: Screw Chiller
year manufactured: Build to order
capacity: 2000 bph
machine length: 6000 mm
machine width: 1820 mm, Ø1600 mm Screw
machine height: 1830 mm
weight: 1470 kg
installed power per motor: 1.75 kW
current state: 1

Screw Chiller Ø1.6 x 6m / two sections

Details

brand: USE Poultry Tech
machine: Screw Chiller
year manufactured: Build to order
capacity: 2000 bph
machine length: 6000 mm
machine width: 1820 mm Screw Ø1600 mm
machine height: 1830 mm
weight: 1470 kg
installed power per motor: 1.75 kW
current state: 1

Screw Chiller Ø1.6 x 9m

Details

brand: USE Poultry Tech
machine: Screw Chiller
year manufactured: Build to order
capacity: 3000 bph
machine length: 9000 mm
machine width: 1830 mm
machine height: 2560 mm
weight: 1550 kg
installed power per motor: 1.75 kW
current state: 1

Screw Chiller Ø1.6 x 12m

Details

brand: USE Poultry Tech
machine: Screw Chiller
year manufactured: Build to order
capacity: 4000 bph
machine length: 12000 mm
machine width: 1820 mm Screw Ø1600 mm
machine height: 1830 mm
weight: 2400 kg
installed power per motor: 1.75 kW
current state: 1
